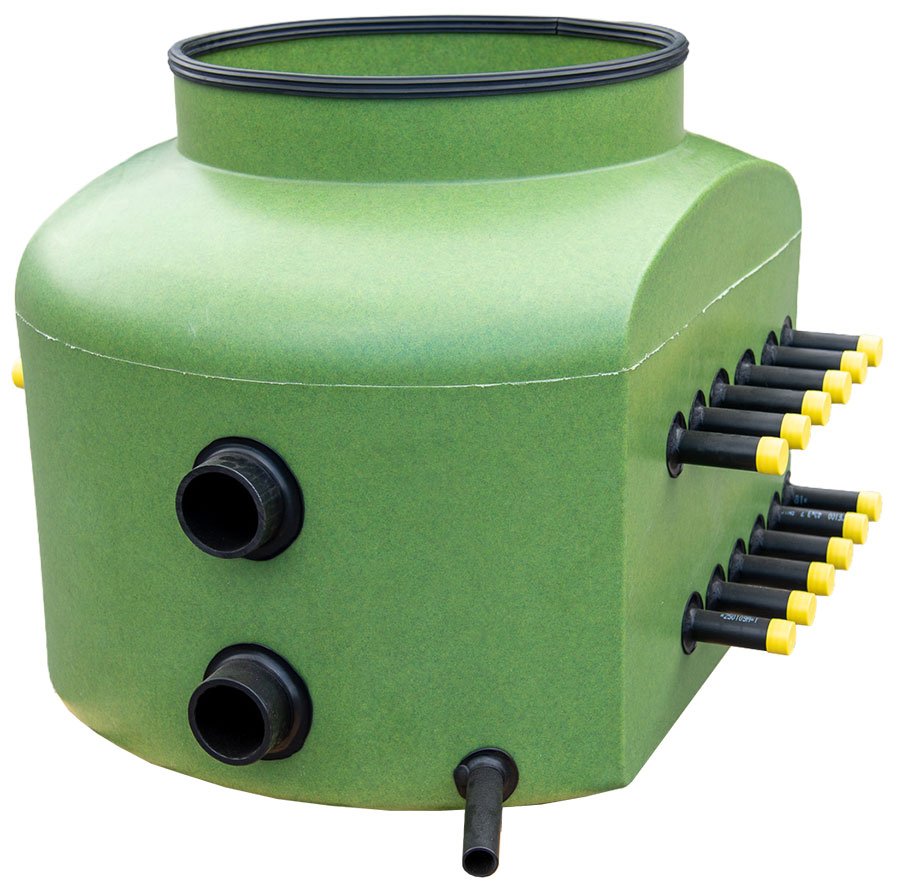

Manifold Chamber OPTIMA
Up to 12 collectors
OPTIMIZED DESIGN FACILITATES INSTALLATION AND USE
Optima is manufactured from polyethylene and is designed for mid-sized projects.
The collar structure enables wider telescope adjustment range. With larger volume, there are more possibilities for different instrumentation and measuring devices.
COVER
Standard delivery includes a locking composite cover for 1.5 tonnes and an adjustable telescope. A trafficable cover for 40 tonnes is available as an optional extra.
CONTENTS
In standard delivery, Optima is equipped with Tacosetter Hyline flow meters made from fiber-reinforced plastic. Shut-off and air release valve material is PVC. This makes the system safe and corrosion-free. Optima is also compatible with most other valve and flow meter models in our range. A shut-off valve for the main lines is available as an optional extra.
PRESSURE TEST PERFORMED ON EACH TANK
Each tank is tested multiple times to ensure tightness. The tank is filled with water to detect any leaks. The tank components and pipes are pressure tested to ensure system tightness. The pressure test covers the main pipe, connections, valves and flow meters.
CUSTOMIZATION
Contact us. We will fulfill your wishes regarding appearance, valves, dimensions and the number of connections.
PRODUCT INFORMATION
Dimensions without lifting ring: 1100x800x800 mm
Material: Polyethylene with UV protection
Color: Green
Main pipe: Ø 40 - 160 mm
Connections: Up to 12 collectors, Ø 32 - 50 mm
