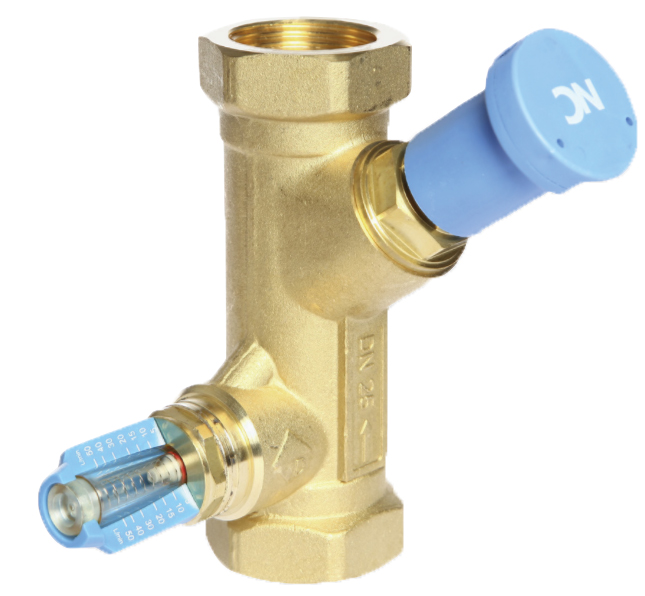

FlowGuard
Balancing valve
- Accurate balancing of flow with seat valve.
- Visual indication of the actual flow rate.
- Wide range flow indicator: Vmax/Vmin = 8:1.
- No diagrams and no electronic equipment required.
- Works in any position.
- Circuit balancing without computer calculation.
- No correction charts required for glycol additives at temp. +20°C.
Application
NC Flow can be used to balance heating, cooling, solar and heat pump circults in both commercial and residential installations. Incorrect circuit flow rate are one of the most frequent reasons for the poor performance of installations.
With no special training required, NC Flow balancing valves offer the advantage of accurate system balancing.
Function
NC Flow balancing valves incorporate integrated flowmeters, which constantly measure the actual flow rate. The flowmeter scale can be fully rotated – easy reading in any position even when the valve body is fully insulated.
NC Flow balancing valves are indifferent to the flow profile on the inlet, therefore under normal operation a straight piece of pipe the same diameter and length of the valve housing is sufficient.
Technical
1-DN 25 capable of 5-50 L/min.
11/4-DN32 capable of 8-80 L/min.
